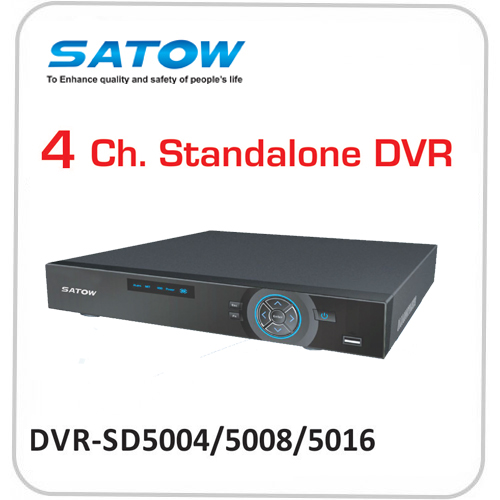

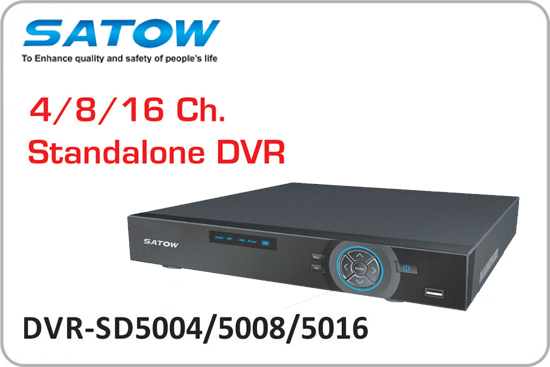

4 / 8 / 16 Ch. Standard DVR

Features:

• Up to 4 / 8 / 16 Cameras with 1080p real-time preview
• H.264 dual-stream video compression
• DVR 4004 / 5008 / 5016 All channel 2CIF real-time recording or up to 9060H recording.
• HDM / VGA TV simultaneous video output
• 4 / 8 / 16 channel synchronous real-time playback, GRID interface & smart search
• 3D intelligent positioning with PTZ dome Camera
• Support 1 SATA HDD up to 4TB, 2 USB2.0
• Multiple network monitoring: Web viewer, CMS (Dss/Smart PSS) & Smart Phone (DMSS)

Specifications:

• Main Processor: Embedded processor
• Operating System: Embedded LINUX
• Video
• Input: 4 Channel BNC, 8 Channel, BNC, 16 Channel, BNC
• Standard: 1 NTSC (525Line,60f/s), PAL (625Line,50f/s)
• Audio
• Input: 4 channel, RCA
• Output: 1 Channel, RCA
• Tow-way Talk: Reuse audio input/output channel 1
• Dispaly
• Interface: 1 HDMI, 1 VGA, 1 TV BNC (1.0Vp-p, 75)
• Resolution: 1920x1080, 1280x1024, 1280x720, 1024x786, 800x600
• Dispaly Split:
• DVR - SD5004: 1/4,
• DVR - SD5008: 1/4/8/9,
• DVR - SD5016: 1/4/8/9/16
• Privcy Masking: 4 rectangular zones (each Camera)
• OSD: Camera title, Time, Video loss, camera lock, motion detection, Recording
• Recording
• Video / Audio Comperession: H.264 / G.711
• Resolution: 960/D1/4CIF(704x576/704x480)/CIF(352x288x352x240)/ QCIF (176x144/176x120)
• Record Rate
• Main Stream: 960H/D1/HD1/2CIF/CIF (1~25/30fps)
• Extra Stream: QCIF (1~25/30ps)/ CIF(1~6/7fps)
• Bit Rate: 48~3072kb/s
• Record Mode: Manual, Schedule (Regular(Continuos), MD), Alarm Stop
• Record Interval: 1~60 min(default: 60min), Pre  -record: 1 to 30 sec, post - record : 10~300sec
• Video Detection & Alarm
• Trigger Events:Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP m Sanpashot , Buzzer & Screen Tips
• Video Detection: MOtion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank.
• Alarm Input: 4 Channel, 8 Channel, 16 Channel
• Relay Output: 3 Channel, 3Channel, 1Channel
• Play Back  & Backup
• Sync Playback:
• DVR - SD5004: 1 / 4,
• DVR - SD5008: 1 / 4 / 9,
• DVR - SD5016: 1 / 4 / 9 / 16
• Search Mode: Time/Date, MD & Exact search (accurate to second)
• Backup Mode: USB Device/Network/Internet SAtA burner
• Network
• Ethernet: RJ-45port (10/100M)
• Network Functions: HTTP. IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP< NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMp, P2P
• Max.User A ccess: 128 Users
• Smart Phone: iPhone, iPAD, Andriod, Windows Phones
• Storage:
• Internal HDD: 1SATAport, up to 4TB
• Auxiliary Interface:
• USB Interface: 2 ports (1 Rear, US B2.0
• RS485: PTZ Control
• General
• Power Supply: DC12V/2A
• Power Consumption: 10W (without HDD)
• Working Environment: - 10 °C ~ +55 °C / 10% ~ 90% RH /86~106kpa
• Dimension (WxDxH): Mini 1U, 325mm x 2mm x 55mm
• Weight: 1.5Kg, (with out HDD
