D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR

D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR
D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR
Brand: CENTURION
Product Code: D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR
Availability: In Stock
Price: Rs175,000
Ex Tax: Rs175,000
Qty:     - OR -   Add to Wish List
Add to Compare

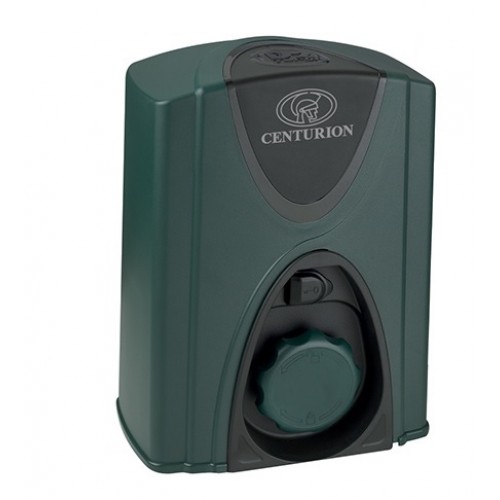

D2 TURBO DOMESTIC SLIDING GATE OPERATOR

Prepare for your sliding gate to be turbocharged. The D2 Turbo is a high-speed, cost-effective operator for domestic gates weighing up to 250kg, with a maximum speed of 400 millimetres per second and powerful peak push force rated at 9kgf. This operator is exceptionally quick and easy to install and set up, with all settings easily configurable via two dials on the controller. With loads of features, the D2 Turbo is the complete motor for a standard, domestic four metre gate.






MAIN FEATURES:
  • Turbo speed for greater security and convenience.
  • Very easy to install and set up, saving you time and money.
  • Reliable battery backup.
  • Dedicated Solar Mode – allows you to disable the Mains Fail buzzer when using solar power.
  • Onboard multichannel CENTURION receiver.
  • Multiple Modes of Operation.
  • Adaptive Collision Sensing.
  • Modular components clip together for easy maintenance.
  • Lockable, easy Manual Override.
  • Now with robust steel pinion – can be easily retro-fitted and ensures reliable operation.
D2 TURBO TECHNICAL DATA:
  DESCRIPTION
Technical Data D2 Turbo
Input voltage 1 90V– 240V AC ±10%, 50Hz
Motor voltage 12V DC
Motor power supply 4 Battery-driven (standard capacity - 12V 5Ah)
Current consumption (mains) Intergral with controller 1A @ 13.7V +/- 1%
Current consumption (motor at rated load) 8/12A
Current consumption (quiescent load) 95mA
Operator push force
Starting 18kgf
Rated 8kgf
Gate mass – maximum 250kg
Gate length - maximum 20m
Gate speed - m/min 6 22 - 26m/min
Gate speed - mm/sec 367 - 433mm/sec
Drive Pinion 17T Module 4
Maximum daily cycle 10 cycles/day
Design life 30 000 cycles
Operations in standby with standard battery 4, 5
Half day 60 cycles
Full day 40 cycles
Collision sensing Electronic
Operating temperature -15°C to +50°C
Degree of protection IP54

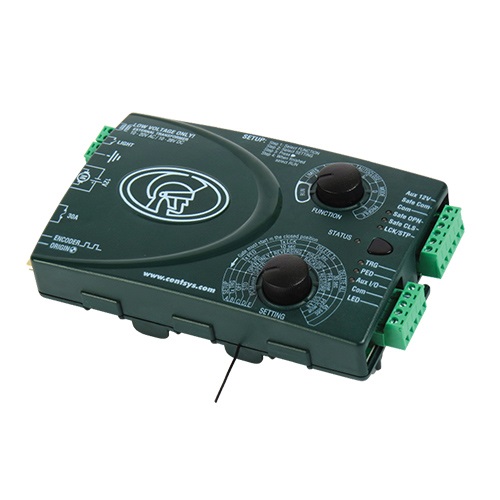

Controller incorporated D2 Controller_H
Onboard receiver type NOVA code-hopping onboard, multichannel
Receiver frequency 433.92MHz
Receiver code storage capacity 32 transmitter buttons
Mass of unit packed 5kg
Packaging dimensions Length: 255mm x Width: 188mm x Height: 333mm
