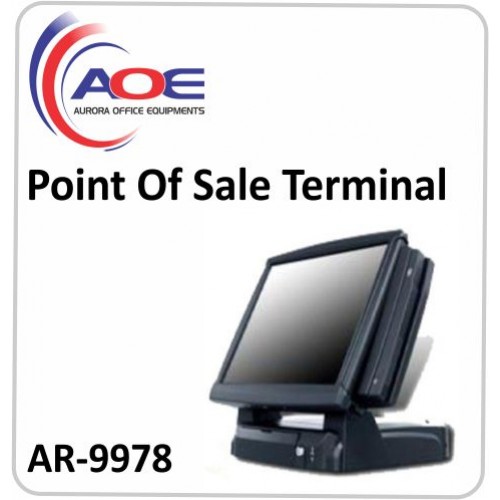

Point of Sale Terminal AR-9978

Product Description

The Specification applies to the highly integrated PC-base small touch terminal AR-9078 operating on a high performance Intel CPU at 2.8 GHz. This series provide a panel size of 15" high luminance TFT LCD with easy Tilt Mechanism on base unit. The AR-9078 utilizes an aluminum alloy die cast base unit that supports optional customer display, with built-in high speed thermal printer.

 Specifications

• Support P4 up to 2.8Ghz
• Power output supply 5v/12v/24v for addtional peripheral devices
• Operation System Support: Windows 2000/Windows XP Pro/WEPOS, Linux
• Unique design HeatPipe is equipped for effective cooling in high temperature environment
• Key lock is equipped to provide extra security for storage devices
• AGP 8X provides high performance graphic resolution
• Possible selections of ELO or Fujitsu touch screen
• Optional VESA Wall mount kit
• Frontier electronic function devices are modular design for easier maintenance
• Robust and splash-resistance, Frontier can be securely operated in any harsh environment
• Can be easily integrated with, MSR Card Reader, Smart card reader, fingerprint Sensor
• recognition system, Pole display and Secondary LCD display
• A smart way to remove the fan cover and change the fan part. Ensure the efficiency of heat-dispassion of the system and the operating stability

Features

• AC Power Source: AC 90 to 264V Full Range.
• AGP 3D Graphics Port: Intel 852GME Graphics Core, Share memory from 8MB up to 64MB
• Audio Port: Line In/ Line Out / MIC In.
• Cash Drawer Port: RS232 Controlled Cash Drawer Port ( RJ-11 Connector )
• CPU: Support Intel P-4 CPU up to 2.8 GHz / Celeronup to 2.8GHz ( Socket 478 CPU )
• Ethernet Port: 10/100 Base-T
• FDD: None ( USB External FDD optional )
• HDD: 6 * USB port (USB 2.0) - Two USB port ( Ver. 2.0, Front ) - Two Powered USB port ( Ver. 2.0 , 1x 12V / 1x 24V , Rear ) - Two USB Port ( Ver.2.0 ) on M/B for option.
• Internal Power Supply: 250W Flex ATX Industrial PSU.
• Keyboard Port: Yes
• LCD Panel: 15? TFT LCD Panel with LVDS Interface
• Main Memory: 184-Pin DDR RAM x 2 up to 2GB. ( DDR400 )
• Mouse Port: Yes
• Operation Temperature: 0oC to 40oC ( without HDD up to 50oC )
• Optical Device: Slim Type CD-ROM/COMBO/DVD
• Parallel Port: 1
• Serial Port: 3 Ports exposed (DB-9) - 3 Ports On board - (1 for touch by default, 1 for cash drawer control, 1 for MSR)
• System Chip Set: North Bridge: Intel 852GME
• System Size: 215MM(L) x 380MM(W) x 600MM(H)
• Touch Panel: 15 ELO (5 Wires) or 15? Fujitsu (4 Wires) Resistive LCD Touch Panel with RS-232 or USB Interface
