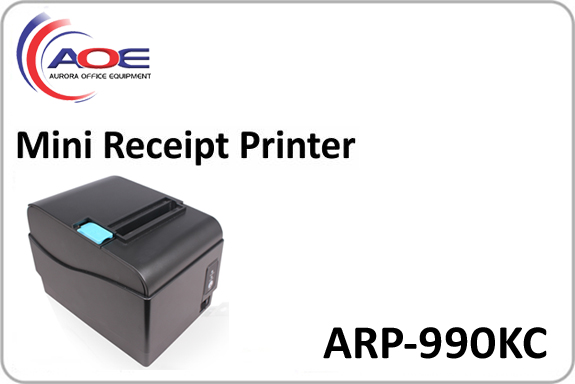

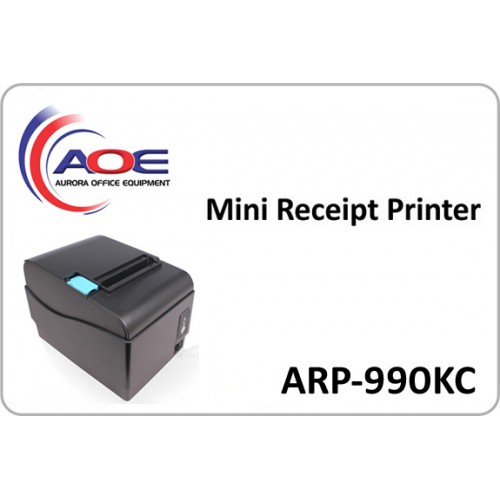

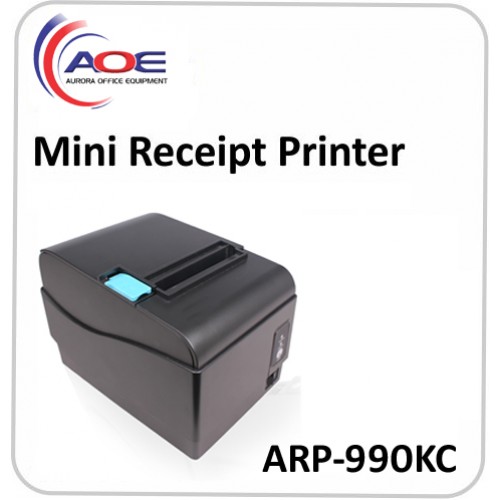

ARP 990KC
The innovative 80x80 printer has multiple printing interfaces, i.e. serial port, USB, internet interface and cashbox interface, and can be used for high-speed printing. The printer has a wireless connection (optional)
Reference Applications
Extraordinary fastb printing speed
- Speed reaches 250mm/s under ideal condition, low noise.
Big paper roll loadable
- 80 mm diameter paper roll makes printing longer and stable.
Easy maintenance
- Simple inner frame, module design, easy to maintain.
Highlights
- The high performance thermal printer is suitable for retail and hospitality. Printing speed of 250mm/s without distracting noise
- Drop -in-paper loading is easy for inexperienced user
- To save space, the printer can be amounted on the wall
- Auto cutter or manual tear is optional
- Waterproof cover is available
Features
- The high performance thermal printer is suitable for retail and
- hospitality environment. They print at a speed of 250mm per
- second without the distracting noise
- Waterproof cover is available
- Drop-in-paper loading means inexperienced user can load paper roll
- To save space, the printer can be hung on the wall
- With cutter or manual tear is up to you
Specification:
- Printing: Direct thermal line printing
- Printing Direction: Bi-directional
- Emulation: ESC/POS
- Paper Supply Method: Easy Paper Loading
- Characters Set: Alphanumeric Character:95
- Language: Buyer Language Support
- Characters Per Line: 48
- Characters Size: FontA:12×24,FontB:9×17
- Resolution: 203dpi(8dots/mm)
- Print Width: 72mm
- Printing Speed: 250mm/s
- Auto Cutter: Partia Cut/Full Cut
- Auto Cutter life: 1,000,000cuts
- Receive Buffer Size: 4KB
- Data Butter: 4K bytes
- Interface: Serial,USB,Ethernet
- Drawer Port: RJ11
- Power Adapter: AC 120~230V±10%(include) DC 24V,2A
- Operating Temperature: 0~50℃
